Transmission for Duette, Pleated, Honeycomb Shades. Cordless Literise. 730015

Transmission for Duette, Pleated, Honeycomb Shades.  Cordless Literise. 730015



Alternative Views:


Our Price: $17.99


Product Code: 1627-1628-1629-1630

Color



Qty:


Description

  • Transmission for Duette, Honeycomb, Pleated Shades
  • Cordless, Literise
  • Commonly used in Hunter Douglas Literise Duette, Applause, 3 Day Blind, Comfortex cordless honeycombs.
  • Color Option: Blue (1630), Green (1629), Black (1628) , Red (1627).
    • BLUE, GREEN: has round shaped hole with a notched. Shaft (of blue & green) is tapered cylinder
    • RED, BLACK: has D shaped hole. Shaft (of red & black) is cylinder
  • If you have old WHITE or BEIGE transmission, these are replaced with newer model.
    • If you have WHITE transmission, then RED is the replacement
    • If you have BEIGE transmission, then BLACK is the replacement
  • Must be used together with SpringMotor for Duette, part # 1614-1616-1618. If you don't want to buy new motor, you must rewind your old motors BEFORE insert into the transmission. If your shade doesn't have tension, your motors are broke or not rewind properly.
  • This is a quick repair if done right. But could become complicated as & errors can be easily made. Please follow the instructions closely.
  • Commonly used on honeycomb shades made by Hunter Douglas, 3 Day Blinds, Comfortex
VIDEO Instructions. How to Replace Motors & Transmission
INSTRUCTIONS:

  1. Slide off the headrail cover. Remove OLD motors & transmision
  2. Connect the hole from the new motor to the new transmission male. DO NOT remove the White Plastic Motor Lock until it is fully attached to Transmission & Shade is in All-the-Way-Down position. DO NOT remove the wire lock on the tranmission (yet).
  3. Multiple motors can be connected for more tension strength. DO NOT remove the LAST lock (yet). If you remove the motor lock too soon, it'll unspring & loses all tension.
  4. Let shade roll open all the way down (a must) for cords to all straighent out.

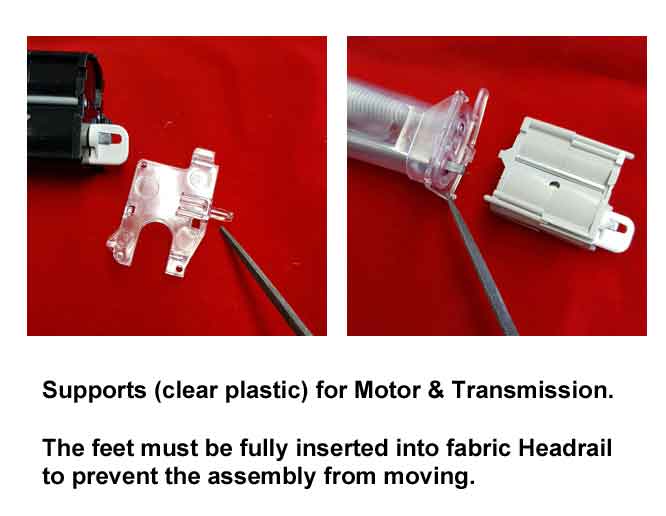

  5. Insert the transmission hole into the shaft. Make sure ALL the feet of transmision & motor securely fit into holes of head fabric.
  6. Gently slide the headrail cover back onto top fabric. If you feel lots of resistance, the headrail edge may catch the fabric & tear it. Inspect & fix as needed. Stop gliding the headrail right before the transmisson/motors assembly.
  7. Remove the 2 wire locks from transmission.
  8. Lift the shade up. Make sure the bottom rail is OFF the ground (to straighten all the cords). It's helpful to have 2 persons. 1 person to hold the shade in freely hanging position, do not let it touch the floor. 1 person to remove the locks.
  9. Remove the white plastic lock from motor
  10. Test your work by lifting up bottom of shade. You should feel tension. If shade doesn't not lift up properly, the motors are not set properly, or you forget to remove all the 3 locks (2 wires, 1 white plastic)
NOTE: the color of green, grey, black (transmission & motors) in the instructions are just examples so you can follow the instructions easily. When you order, order the same exact color of your broken parts.
If you have old WHITE or BEIGE transmission, these are replaced with newer model.
  • If you have WHITE transmission, then RED is the replacement
  • If you have BEIGE transmission, then BLACK is the replacement

It's not uncommon that the lift strings are broken too. Make sure all the strings are still attached to bottom rails & top spools. If not, fix the broken cords FIRST before connecting motors & transmission.



How to Replace Transmission & Motors for Cordless Blinds & Shades
How to Rewind Transmission
How to Restring Shade with SPOOLS system
